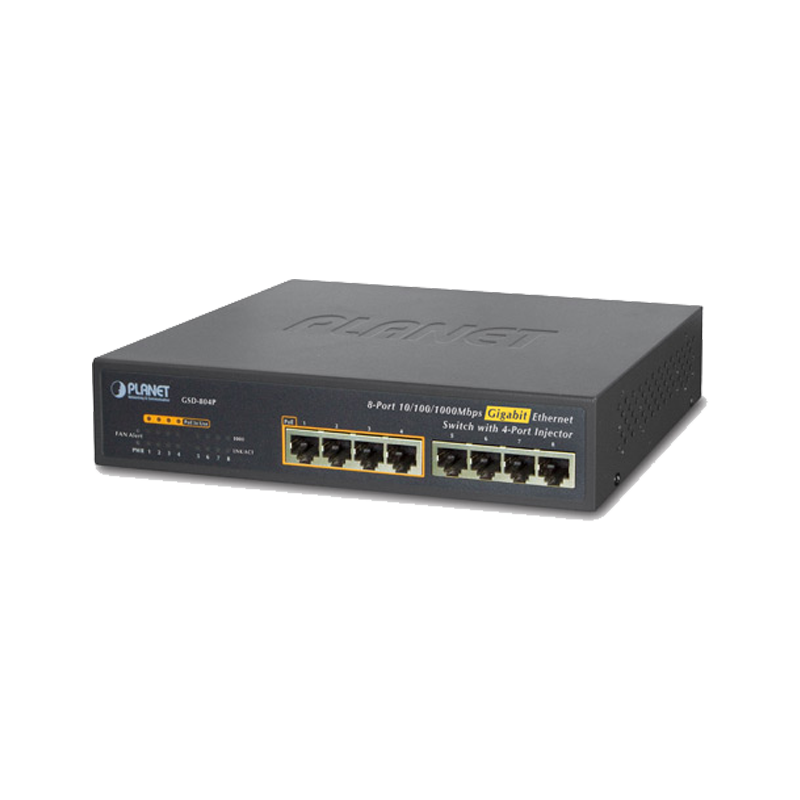

GSD-804P
8-Port 10/100/1000Mbps with 4-Port PoE Gigabit Ethernet Switch
RJ-45 Interface
- 8-Port 10/100/1000Mbps Gigabit Ethernet ports
- 4-Port supports 48V DC power to PoE Powered Device
- PoE Complies with IEEE 802.3af
Power over Ethernet
- End-Span PSE Up to 4 IEEE 802.3af devices powered Supports PoE Power up to 15.4 watts for each PoE port
- Auto detect powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
Switching
- Hardware based 10/100/1000Mbps Auto-negotiation and Auto MDI/MDI-X
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 8K absolute MAC addresses
- 9K Jumbo Frame supports at all speed (10/100/1000Mbps)
- Automatic address learning and address aging
Hardware
- 10-inch desktop size, rack mountable; 1U height
- LED indicators for PoE ready and PoE activity
- Optional Rack Ear Accessories Kit for 10-inch cabinet (RKE-10A) and 19-inch cabinet (RKE-10B)
- 1 silent fan to provide stable and efficient power performance
- Energy-Saving technology
- Link down power saving
- Intelligent scales power based on cable length
Specification
