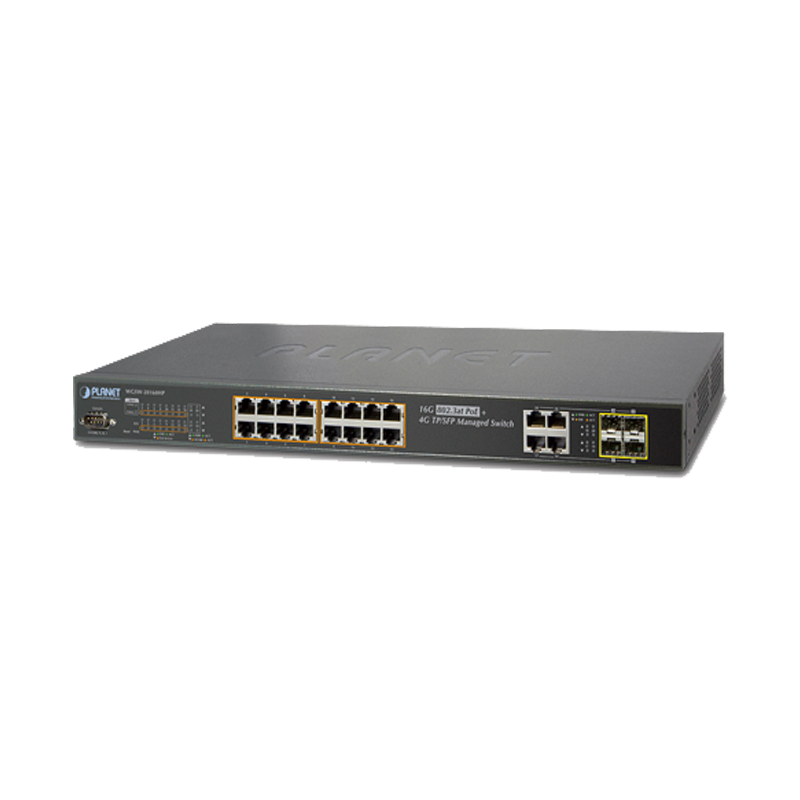

WGSW-20160HP
16-Port 10/100/1000Mbps 802.3at PoE + 4-Port Gigabit TP / SFP Combo Managed Switch
Physical Port
- 16-Port 10/100/1000Base-T RJ-45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
- 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000Mbps dual mode, shared with Port-17 to Port-20
- RS-232 DB9 console interface for basic management and setup
Power over Ethernet
- Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
- Complies with IEEE 802.3af Power over Ethernet End-Span PSE
- Up to 16 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Management
- โ Total PoE power budget control
- โ Per port PoE function enable/disable
- โ PoE Port Power feeding priority
- โ Per PoE port power limit
- โ PD classification detection
- โ PD Alive-check
- โ PoE schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwiDTh
- Storm Control support
- โ Broadcast / Multicast / Unknown-Unicast
- Supports VLAN
- โ IEEE 802.1Q Tagged VLAN
- โ Up to 255 VLANs groups, out of 4094 VLAN IDs
- โ Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
- โ Priv
- 16-Port 10/100/1000Base-T RJ-45 copper with IEEE 802.3at / 802.3af Power over Ethernet Injector function
- 4 10/100/1000Mbps TP and SFP shared combo interfaces, SFP(Mini-GBIC) supports 100/1000Mbps dual mode, shared with Port-17 to Port-20
- RS-232 DB9 console interface for basic management and setup
- Power over Ethernet
- Complies with IEEE 802.3at High Power over Ethernet End-Span PSE
- Complies with IEEE 802.3af Power over Ethernet End-Span PSE
- Up to 16 ports of IEEE 802.3af / 802.3at devices powered
- Supports PoE power up to 30.8 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100m
- PoE Management
- โ Total PoE power budget control
- โ Per port PoE function enable/disable
- โ PoE Port Power feeding priority
- โ Per PoE port power limit
- โ PD classification detection
- โ PD Alive-check
- โ PoE schedule
- ate VLAN Edge (PVE)
- โ Protocol-based VLAN
- โ MAC-based VLAN
- โ Voice VLAN
- Supports Spanning Tree Protocol
- โ STP, IEEE 802.1D Spanning Tree Protocol
- โ RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
- โ MSTP, IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN
- โ BPDU Guard
- Supports Link Aggregation
- โ 802.3ad Link Aggregation Control Protocol (LACP)
- โ Cisco ether-channel (Static Trunk)
- โ Maximum 10 trunk groups, up to 16 ports per trunk group
- โ Up to 32Gbps bandwiDTh (Full Duplex Mode)
- Provides Port Mirror (many-to-1)
- Port Mirroring to monitor the incoming or outgoing traffic on a particular port
- Loop protection to avoid broadcast loops
Quality of Service
- Ingress Shaper and Egress Rate Limit per port bandwiDTh control
- 8 priority queues on all switch ports
- Traffic classification
- โ IEEE 802.1p CoS
- โ TOS / DSCP / IP Precedence of IPv4/IPv6 packets
- โ IP TCP/UDP port number
- โ Typical network application
- Strict priority and Weighted Round Robin (WRR) CoS policies
- Supports QoS and In/Out bandwiDTh control on each port
- Traffic-policing policies on the switch port
- DSCP remarking
Multicast
- Supports IGMP Snooping v1, v2 and v3
- Supports MLD Snooping v1 and v2
- Querier mode support
- IGMP Snooping port filtering
- MLD Snooping port filtering
- Multicast VLAN Registration (MVR) support
Security
- IEEE 802.1x Port-based / MAC-based network access authentication
- Built-in RADIUS client to co-operate with the RADIUS servers
- TACACS+ login users access authentication
- RADIUS / TACACS+ users access authentication
- IP-based Access Control List (ACL)
- MAC-based Access Control List
- Source MAC / IP aDTress binding
- DHCP Snooping to filter untrusted DHCP messages
- Dynamic ARP Inspection discards ARP packets with invalid MAC aDTress to IP aDTress binding
- IP Source Guard prevents IP spoofing attacks
- Auto DoS rule to defend DoS attack
- IP aDTress access management to prevent unauthorized intruder
Management
- Switch Management Interfaces
- โ Console / Telnet Command Line Interface
- โ Web switch management
- โ SNMP v1, v2c, and v3 switch management
- โ SSH / SSL secure access
- Four RMON groups (history, statistics, alarms, and events)
- IPv6 IP ADTress / NTP / DNS management
- Built-in Trivial File Transfer Protocol (TFTP) client
- BOOTP and DHCP for IP aDTress assignment
- Firmware upload/download via HTTP / TFTP
- DHCP Relay
- DHCP Option82
- User Privilege levels control
- NTP (Network Time Protocol)
- Link Layer Discovery Protocol (LLDP) Protocol
- Cable Diagnostic technology provides the mechanism to detect and report potential cabling issues
- Reset button for system reboot or reset to factory default
- PLANET Smart Discovery Utility for deploy management
- ICMPv6
Specification
