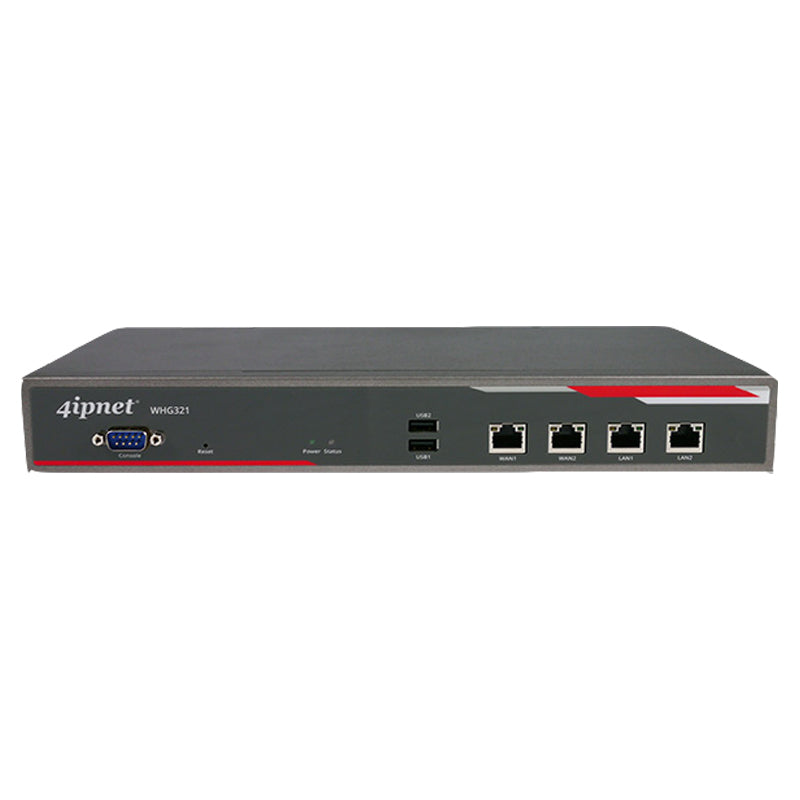

WHG321

מוצר קודם | מוצר הבא
תיאור מוצר
ade wireless LAN controller that provides establishments such as small hotels, schools, or municipal organizations with a comprehensive set of managed Wi-Fi features at a competitive license-free price point. With AP management, user authentication, policy assignment, traffic shaping, firewall features, and much more all packaged into a single box, the WHG321 provides network administrators with a reliable, easy-to-use, and centralized management console for an entire organization’s wireless network infrastructure.

Description

SYSTEM CAPACITY
  • Up to 40 Managed 4ipnet APs
  • Up to 10 Managed Switches
  • Up to 10,000 Local Accounts
  • Up to 10,000 On-Demand Accounts
POWER
  • DC Input: 12V / 2A
  • Power adapter included
  • LED INDICATORS
  • Power, Status
USER SECURITY
  • 802.1X, UAM (browser-based), IP or MAC-based
  • Customizable Captive Portal and Walled Garden
  • Local Account Database
NETWORK SECURITY
  • Remote, Local, and Site-to-Site VPN
  • Local, On-Demand, Guest, RADIUS, LDAP, NT Domain, SIP, POP3 Authentication Servers
  • Intra-VLAN or Port-Based Network Isolation
NETWORK SERVICES
  • Internet Protocols Supported: IPv4, IPv6
  • DHCP Server and Relay
  • Network Address Translation
  • Built-in HTTP Proxy Server
  • WAN Port Failover and Load Balancing
  • Micros Opera PMS Integration
DEVICE MOBILITY
  • Remote VPN, Local VPN, Site-to-Site VPN
  • WISPr Smart Client
  • Cross Gateway Roaming
  • Mobile Device Optimized Captive Portal
  • Multiple Device Logins Per Account
SYSTEM & NETWORK STATUS
  • System Dashboard
  • Graphical System Performance Reports
  • Traffic Volume Reports
  • Online Device Monitoring
  • Active Sessions List
  • Configurable SYSLOG Severity
  • SMTP (E-mail) Notifications
PHYSICAL DIMENSIONS
  • Form Factor: Desk-top
  • 33.0 cm x 18.0 cm x 4.5 cm (W x D x H)
  • Weight: 1.81 kg (3.99 lbs)
INTERFACES
  • WAN: 2 x 10/100/1000Base-T Ethernet, Auto-MDIX, RJ-45
  • LAN: 2 x 10/100/1000Base-T Ethernet, Auto-MDIX, RJ-45
  • Console: 1 x DB9 (DB9 to RS-232 console cable adapter included)
  • 2 x USB3.0
ENVIRONMENTAL CONDITIONS
  • Operating Temperature: 0°C (32°F) to 45°C (113°F)
  • Operating Humidity: 5% to 95% non-condensing
SYSTEM MANAGEMENT
  • Browser-Based Configuration
  • System Backup and Restore
  • Network Utilities
AP MANAGEMENT
  • Automatic AP Discovery and Provisioning
  • AP Firmware Batch Upgrade
  • Layer 2 and Layer 3 Tunneled AP Management
  • AP Load Balancing

Specification
