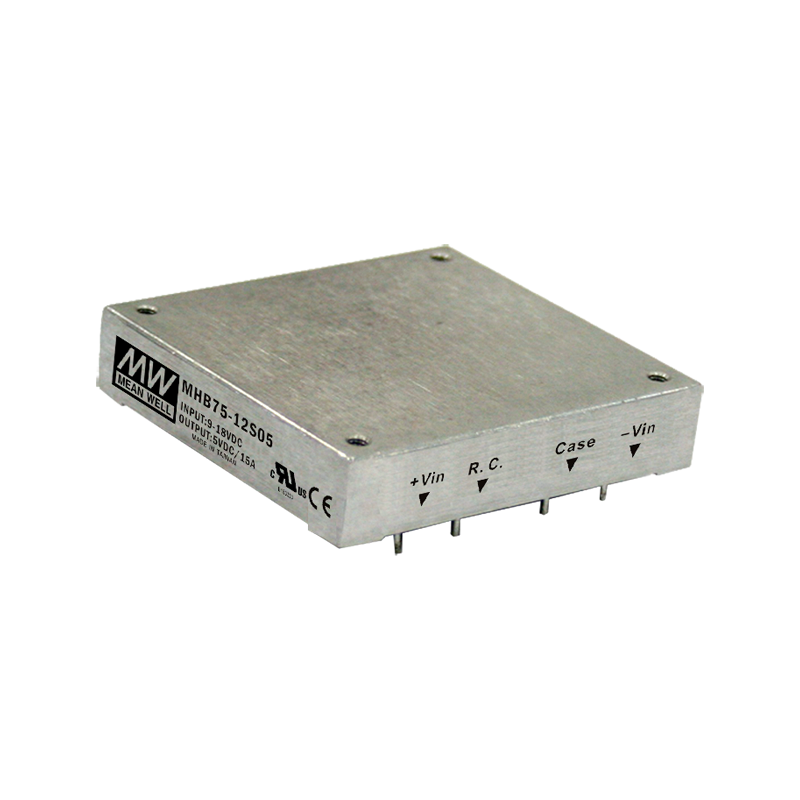

DC/DC Brick Type - 1/4 Brick
40~150W Brick Type - 1/4 Brick
- Module Type Selection Guide
- Quarter-brick(2.28" x 1.45" x 0.5") with industrial standard pin-out
- Ultra-Wide input range: 12:1 (14~160 Vdc) 8:1 (9~75 Vdc) 3:1 (60~160 Vdc)
- Certificate: RQB Series comply with railway standard EN50155 IQB Series comply with ITE standard EN55032
- Wide operating temperature range -40 ~ +90 o C
- Full encapsulated
Specification
