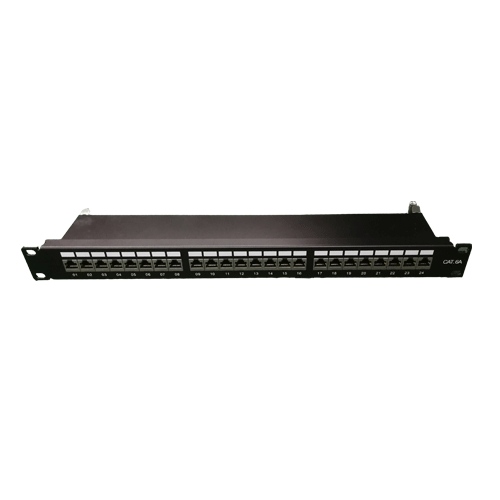

ADG-PP-24C6A
ADG-PP-24C6A
ELECTRICAL
1. Voltage rating: 125V AC RMS
2. Current rating: 1.5 AMP
3. Contact Resistance: 20 milliohms max
4. Insulatuion resistance: 100 megohms min 500V DC
5. Dielectric strength: 750v AC RMS 60Hz, 1min
6. C6 permanent link: conform to ANSI / TIA / EIA – 568 B.2-1
ENVIRONMENTAL
1. Storage: -40º to +70 º
2. Operation: -10º to +60 º
RJ45 jacks comply to requierments of IEC -60603-7-5 Mates with modular plug conforming to FCC part 68
MECHANICAL
1. Shield material: Brass C2680 T=0.25 mm
2. Housing material: PBT+30%GF
3.Contact material: phosphor bronze plating gold
4. Panel frame: zn plating
5. IDC material: PC UL94V-0 trminal: phosphor bronze, tin plating
6. RJ45 jack life: 750 times min
7. IDC life: 200 tims min
8. Wire: AWG 22~24
9. TIA cat 6a perm link test: worst pair next margin ≥ 3.0Db
10. Retentiveness of insertion structure: 50N 60±5s
Specification
