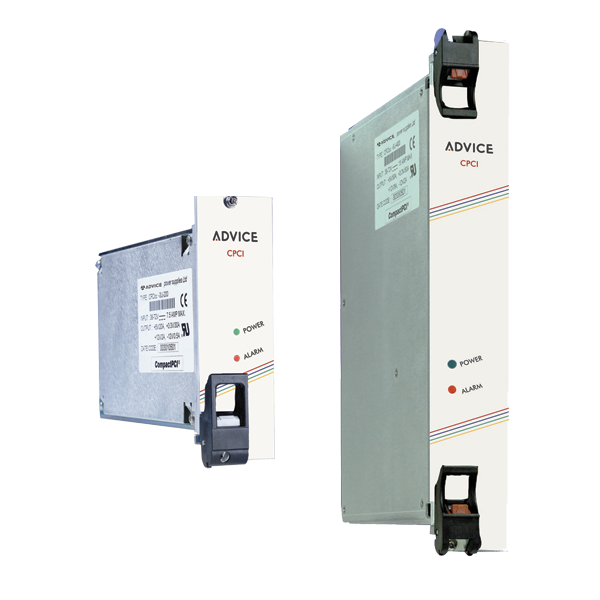

Compact PCI power supply

תיאור מוצר
The CompactPCI (CPCI = Compact Peripheral Component Interface) series are the industry's leading cPCI AC/DC power supplies delivering up to 500W continuous power.

  • Our full range of CompactPCI (cPCI) products are compliant with the PICMG® 2.11 power interface specification using the standard Positronic 47-pin connector.
  • These CompactPCI power supplies incorporate active power factor correction, 85-264VAC universal or DC input models covering a range from 18-72VDC, making it ideal for use in every application.
  • Very high efficiency and power density results from the use of advanced component and circuit technologies such as synchronous rectification,low profile transformers and SMT components.
  • Telkoor's unique design using two converters in parallel, one for the +3.3V and the other for the +5V, enable the user the flexibility to determine unique load requirements for each channel independently. Full load can be drawn from each channel independently. The CompactPCI series provides design engineers with the flexibility they need to meet any design requirements.
  • We offer customers a monitor and control (M&C) system based on an intelligent I2C Bus that provides comprehensive remote status monitoring and control functionalities.
