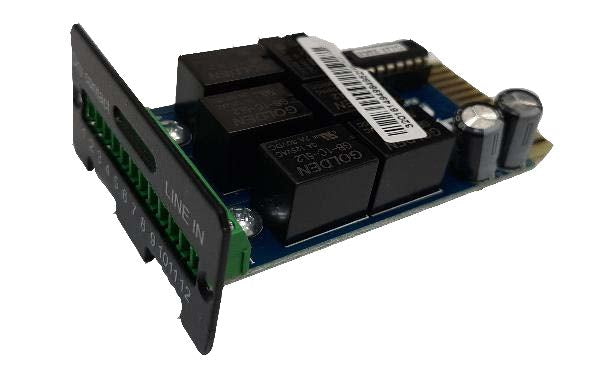

Dry contact card is UPS options. which is used to provide UPS internal status to the outside or control peripheral device according to UPS status in the form of dry contact

Features

IBM server, PC machine, work station and other device application.

Industry device automatic control and communication applications

Dry contact card only provides interface (dry contact), users make application software themselves

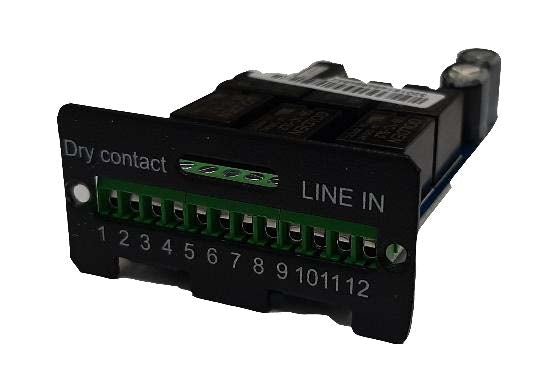

Pins definition of connecting terminal on the board Terminal No.

Terminal function

Terminal No.

Terminal function

1

Common source

9

Bypass active NO

2

UPS on No

10

Bypass active NO

3

AC fail No

11

UPS fail NO

4

AC fail No

12

UPS fail NO

5

Batt low NO

CN4-1

Remote shutdown

6

Batt low NO

CN4-2

GND

7

UPS alarm NO

8

UPS alarm NO





Specifications:
