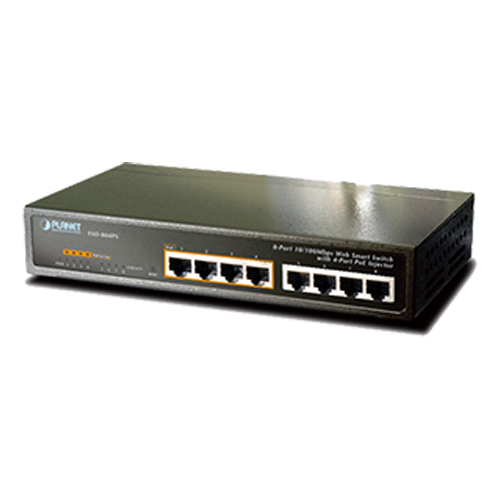

FSD-804PS
8-Port 10/100Mbps with 4-Port PoE Web Smart Ethernet Switch
Interface
- 8-port 10/100Mbps Fast Ethernet ports
- 4-port supports 48V DC power to PoE Powered Device
PoE
- Complies with IEEE 802.3af Power over Ethernet End-Span PSE
- Up to 4 IEEE 802.3af devices powered
- Supports PoE Power up to 15.4 watts for each PoE ports
- Auto detects powered device (PD)
- Circuit protection prevents power interference between port
- Remote power feeding up to 100m
- PoE Management
- Total PoE power budget control
- Per port PoE function enable / disable
- PoE Port Power feeding priority
- Per PoE port power limit
- PD classification detection
- Management
- Web interface for remote management
- Firmware upgrade through Web interface
- PLANET Smart Discovery utility automatically finds PLANET devices on the network
- SNMP Trap for alarm notification of events
Switching
- Hardware based 10/100Mbps Auto-negotiation and Auto MDI / MDI-X function
- Flow control for full duplex operation and back pressure for half duplex operation
- Integrates address look-up engine, supporting 1K absolute MAC addresses
- Automatic address learning and address aging
- IEEE 802.1Q Tag based VLAN and Port-based VLAN
- 2 priority queues on all switch ports
- Port based, IP DSCP and 802,1p tag priority QoS
- Ingress / Egress Bandwidth Control
- Port Security
Hardware
- 10-inch desktop size, rack mountable; 1U height
- Reset button for reset to default setting and system reboot
- LED indicators for POE ready and POE activity
- Optional rack ear Accessories kit for 10-inch cabinet (RKE-10A) and 19-inch cabinet (RKE-10B)
- 1 silent fan to provide stable and efficient power performance
Specification
