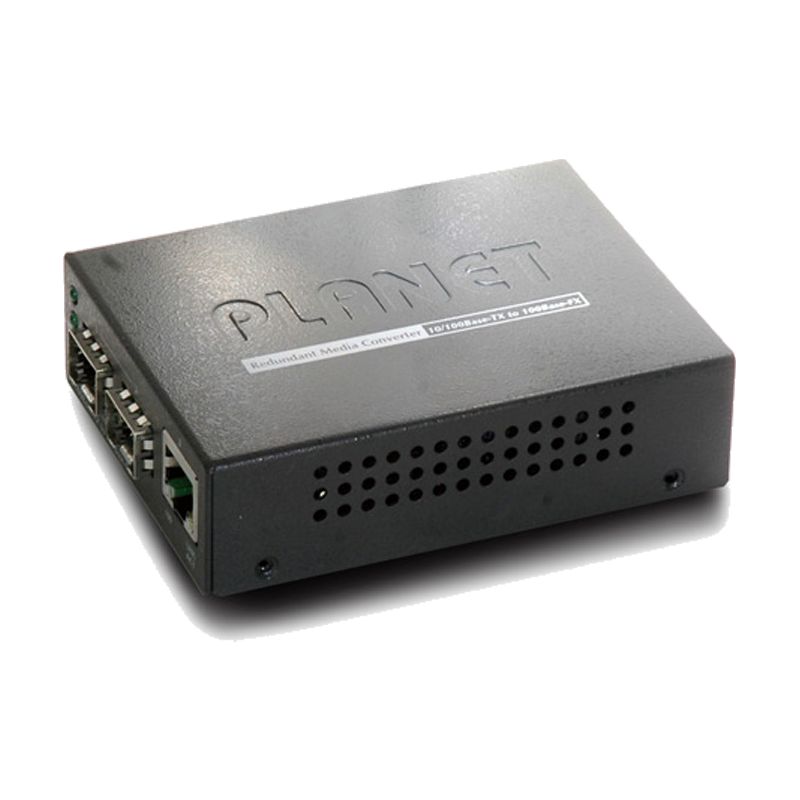

FT-1205A
10/100Base-TX to 100Base-FX Redundant Media Converter (1 TP, 2 SFP)
Description
Standard
- Complies with IEEE 802.3, IEEE 802.3u 10 / 100Base-TX and 100Base-FX
- IEEE 802.3x full-duplex flow-control, back-pressure in Half-duplex eliminate packet loss
- TS-1000 / OAM function built-in, the device can be remotely monitored with port link status
Interface
- Dual 100Base-FX SFP fiber optic
- One 10 / 100Base-TX copper
- Auto-negotiation for 100Base-TX half-duplex or 100Base-T full-duplex
- Supports auto MDI / MDI-X function
- Supports maximum frame size up to 2046Kbytes
Redundancy
- Link status auto-detect and redundant on dual ports with the same connector type
- Only primary port is active at a time, the backup port is blocked
- While primary port link fail occurrences, the traffic will swap to backup port automatically
- Once the primary port status is back to linkup, the traffic will swap from backup port to primary port
- Hardware redundant swaps less than 10 ms
Mechanical
- External 5V / 2A DC power supply
- LED indicators for easy network diagnostic
- DIP switch for 3-port operation with Fast Ethernet switch mode or redundant mode
- DIP switch for LBR (Loop Back Reply) on / off selection
- Compact size work with PLANET MC family Media Chassis, MC-700 / MC-1500 / MC-1500R / MC-1500R48
