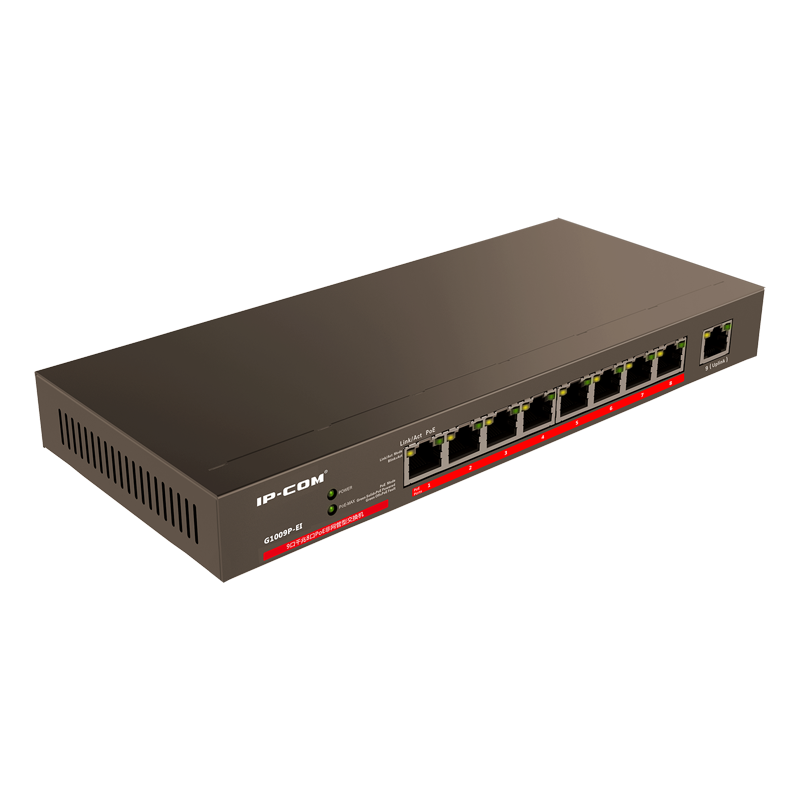

G1009P-EI

תיאור מוצר
9-Ports 10/100/1000 Desktop Switch with 8-PoE Ports;

Technical Specs

  • Standard&Protocol IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at
  • Port Description Support IEEE802.3x flow control (half/full duplex)
  • One 10/100/1000BASE-TX uplink port
  • Port Features Support IEEE802.3x flow control (half/full duplex)
  • Support port-based broadcast storm control
  • Support pps-based broadcast storm control
  • Switching Capacity Backplane Bandwidth 18Gbps
  • Packet Forwarding Rate 13.4Mpps
  • Full duplex on each port
  • MAC Adress Table 4k
  • Switching Mode Store-and-forward
  • Power DC Input
  • Power Consumption: <127.5W
  • Maximum PoE Output Power: 121.2W
  • Power Module PoE 802.3af(15.4W)/802.3at（30W）
  • Dimensions 235mm*103mm*27mm(L x W x H)
  • Weight <5kg
  • WorkingTemperature -10℃～45℃
  • Working Humidity 10%～90%（Non condensing)
