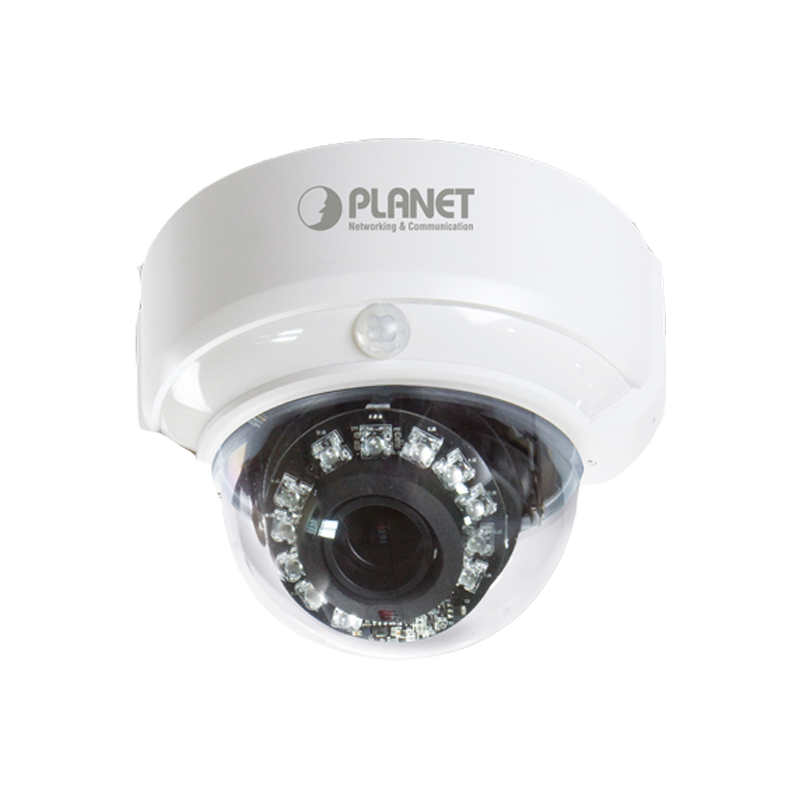

5 Mega-Pixel 20M IR Vari-Focal Dome IP Camera

  • 1/3" progressive 5 mega-pixel CMOS sensor
  • 3.3~12.0 mm Vari-Focal, DC Auto-Iris Lens
  • 0.5 lux Minimum Illumination at F1.4
  • Maximum resolution 2592 x 1944
  • Removable IR-Cut Filter for Day & Night Function
  • Built-in PIR sensor (6m/120 degree coverage) for thermal / motion detection
Video / Audio
  • H.264 / MPEG-4 and M-JPEG video compression simultaneously
  • Simultaneous multi-stream support
  • H.264 high profile, main profile and baseline
  • Max. Resolution of 1080P at 30fps and 5 mega-pixel at 15fps
  • 3DNR to improve picture quality at low Lux
  • WDR Enhancement to enhance visibility under extremely bright or dark environments
  • 2-Way audio support with enhanced audio quality
  • Tamper and audio detection for unauthorized changes
Network and Configuration
  • Compliant with IEEE 802.3af PoE interface for flexible deployment
  • Equipped with Gigabit Ethernet port
  • Auto MDI/MDI-X supported
  • Supports for IPv6 in addition to the standard IPv4
  • RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
  • ONVIF compliant for interoperability
  • Built-in 12 IR Illuminators, effective up to 20 meters
  • Intelligent Motion / Tampering / Audio Detection alarm triggers
  • Built-in Samba client for NAS
  • 3GPP for 3G mobile remote applications
  • Micro SD card local video recording supported
  • RS485 interface for P/T scanner control
  • Digital Input/Output for integration with sensors and alarms
  • Cam Viewer 3 Central management software supported

מפרטים טכניים

Specification ICA-4500V EN
