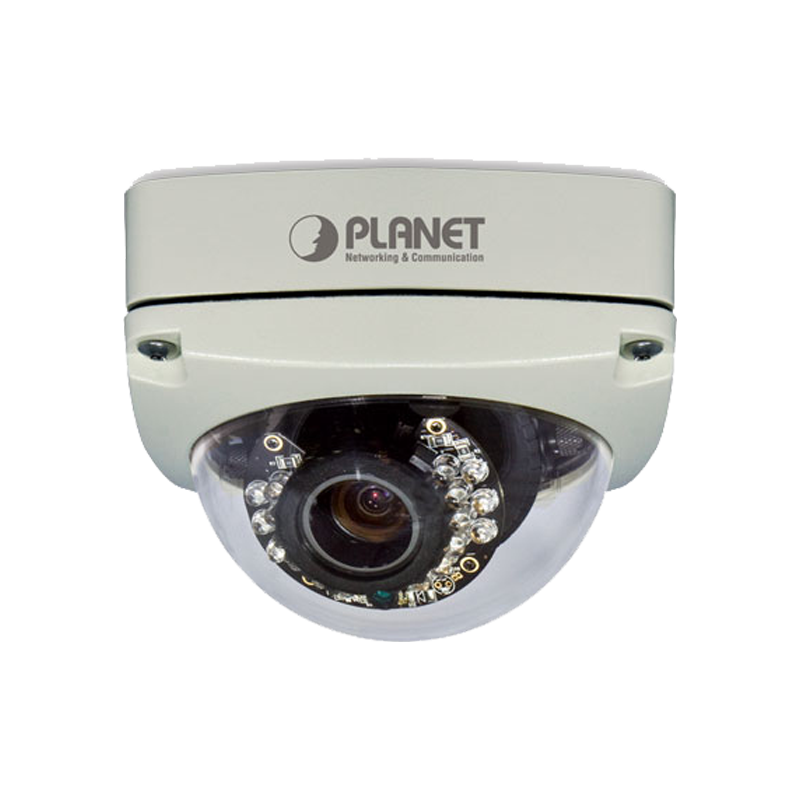

ICA-5550V

5 Mega-pixel Vandalproof IR IP Camera

Camera

• 1/3.2" 5 mega-pixel progressive scan CMOS sensor
• 3~9 mm vari-focal, DC auto-iris lens
• 0 lux minimum illumination at F1.8
• Maximum resolution 2592 x 1944
• Removable IR-cut filter for Day & Night function

Video / Audio

• H.264 / MPEG-4 and M-JPEG video compression simultaneously
• Simultaneous multi-stream support
• H.264 high profile, main profile and baseline
• 3DNR to improve picture quality at low lux
• WDR Enhancement for enhanced visibility under extremely bright or dark environments
• Two-way audio support with enhanced audio quality

Network and Configuration

• Compliant with IEEE 802.3af PoE interface for flexible deployment
• Auto MDI/MDI-X supported
• Supports IPv6 protocol in addition to IPv4
• RTSP / UPnP / 3GPP / HTTPS protocols selectable

Installation & Management

• ONVIF compliant for interoperability
• Built-in 18 IR illuminators, effective up to 20 meters
• IK-10 / IP66 classification with vandal and weather proof
• Built-in Samba client for NAS
• 3GPP for 3G mobile remote applications
• Micro SD card local video recording supported
• Digital Input/Output for integration with sensors and alarms
• Cam Viewer 3 central management software supported
