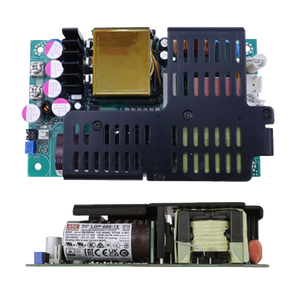

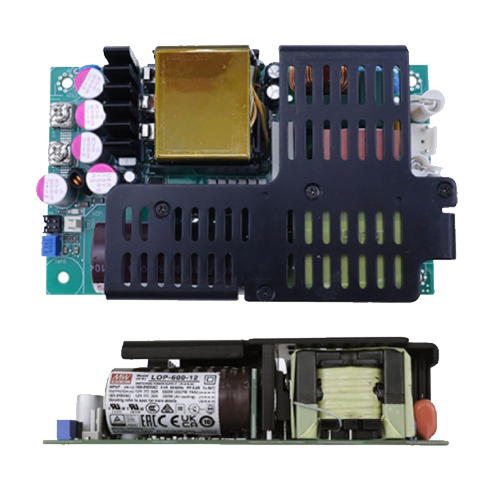

LOP 600

תיאור מוצר
  • MEAN WELL Patent Number: ZL 202223277512.1
  • 5"x3" compact size with low profile (12V:35mm, 15~54V: 33.5mm)
  • 80-264Vac input with PFC, No load power consumption<0.5W
  • Global certificates in multi-fields (ITE 62368-1, Medical 60601-1, Household 60335-1, Industrial 61558-1/-2-16)
  • 150%peak load @ 3s
  • 400W convection, 600W with FAN 23CFM forced-cooled
  • Suitable for Class I or Class II installations
  • Over voltage category III (OVC III)
  • -40~ +80°C wide range operation temperature
  • High efficiency up to 95%
  • Protections: Short circuit / Overload/Over voltage / Over temperature
  • Extremely low leakage current
  • Operating altitude up to 5000 meters
  • Built-in 12V/0.5A for external FAN
  • 3 years warranty



Specification

             LOP-600-27 / LOP-600-36 / LOP-600-48 / LOP-600-54
