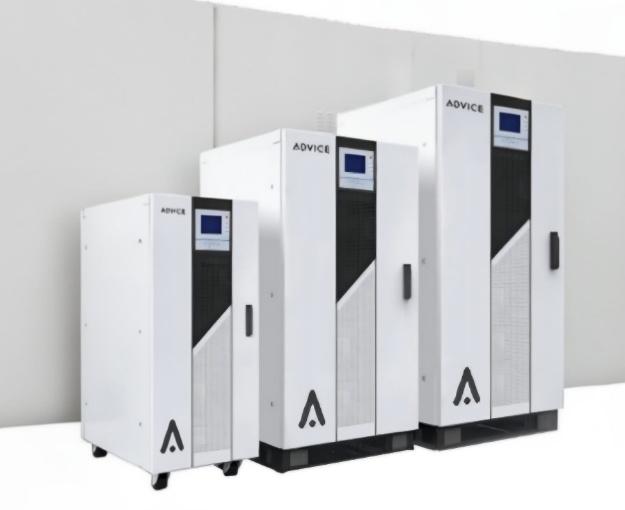

Medical 3380-160 UPS

Medical 3380-160 UPS
M3380, M33100, M33120, M33160

Features:

• Online Double Conversion
Online Double Conversion design for pure output
sine wave with stabilized voltage and frequency
• Back feed protection
Beck feed kit as standard modification
• IEC/EN60601-1
Medical electrical equipment standard
• Full DSP Control
Double DSP control makes the whole system more stable and reliable
• High Power Factor
The input power factor 0.97 with filter helps to improve the efficiency, reduce the harmonic pollution to the Grid and lower the UPS running cost
• N+X Parallel Redundancy
N+X parallel redundant design, up to 6 units available, makes the configuration more flexible
• Wide Input Adaptability
The range of AC input voltage is (380/400/415Vac) (-25%/+20%), minimizing transfer to battery mode, thereby greatly prolonging the battery life
Wide input frequency ranging from 45Hz to 65Hz, ensures stability of UPS while generator connected
• Optimized Battery Management
Intelligent battery management system and advanced
battery auto float/boost charge technology, reduces the frequency of battery maintenance, greatly improves the battery efficiency and extends battery life
Battery discharge time prediction: The system will display the backup time of battery calculated by discharge current and voltage
Battery self-test: Battery is automatically tested at regular intervals
Flexible battery voltage configuration
• Power Walk In
Specially designed power walk in function, in which
rectifier of each unit in parallel system will be turned on in sequence at intervals to avoid the sudden load on the generator, thereby reducing the cost of the generator required
• Generator Mode
Set the maximum output power of the generator when a smaller one than needed is employed to extend the battery duration time. In this case, the load is supplied by both the generator and battery
• LBS Synchronization
Synchronize the output of the two independent UPS systems (Single unit or parallel) even when the two systems are operating on different modes (Bypass/Inverter) or on battery
• Multi-protection
Self-diagnosis function will take place before start-up for safety
Multi-protection: AC input under/over voltage, overload, short-circuit, over-current, over bus voltage, over-temperature, fan failure, auxiliary power failure, battery under voltage, battery over-charge and so on
• EPO Function
A concave red EPO button with transparent cover is
embodied in the LCD control panel for emergency power off
• User-friendly Network Management
LCD and LED mimic diagram: Real time operation parameters and status (7-inch touch screen optional)
RS232 & RS485 communication ports: For local monitor with corresponding software, both can support
MODBUS protocol
SNMP adapter (Optional): For remote monitor through network
Dry contacts (optional)
