MWLC550-20XX

תיאור מוצר

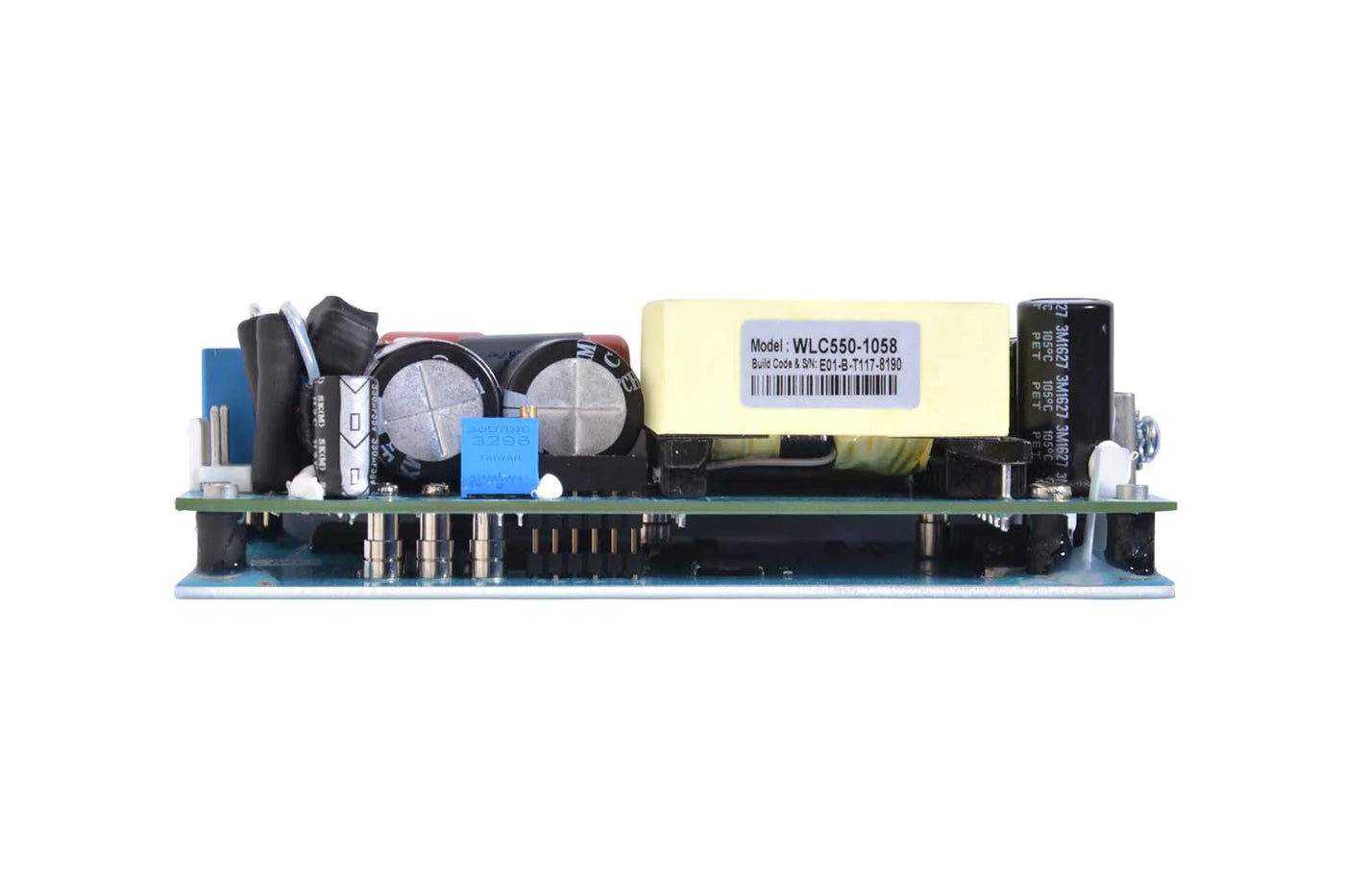

The EOS MWLC Conduction Rated Arctic Series addresses the growing demand in the market for conduction rated power supplies. 350 watts of EOS Power in 24.79 cubic inches  which can be used in conduction, convection or forced-air modes of operation with 5Vstand by and remote ON/OFF avalable
  • 5 x 3 x 1.65 Inches Form factor
  • 350 Watts Convection
  • Approval to EN60601 3rd Edition
  • Efficiencies 92 % Typical
  • -40 to 70 degree operating temperature*
  • 12 V / 0.5 A Fan Output
  • 3.37m Hours, Telcordia -SR332-issue 3 MTBF < 0.3 W
  • MTBF : >3M hours as per Telcordia SR-332, issue 3
  • Medical (BF) Safety Approvals
  • Meets standard IEC60601-1-2 : 2014 (4th Edition)
  • Conduction cooling 250 Watts
  • No Load Power < 1 Watts
  • Remote ON/OFF NEW
  • +5 Vdc Standby Output NEW
  • Now IEC62368-1:2018 Certified NEW
  • Hybrid Technology Design
  • 7 Years Warranty option on Request

Specification
