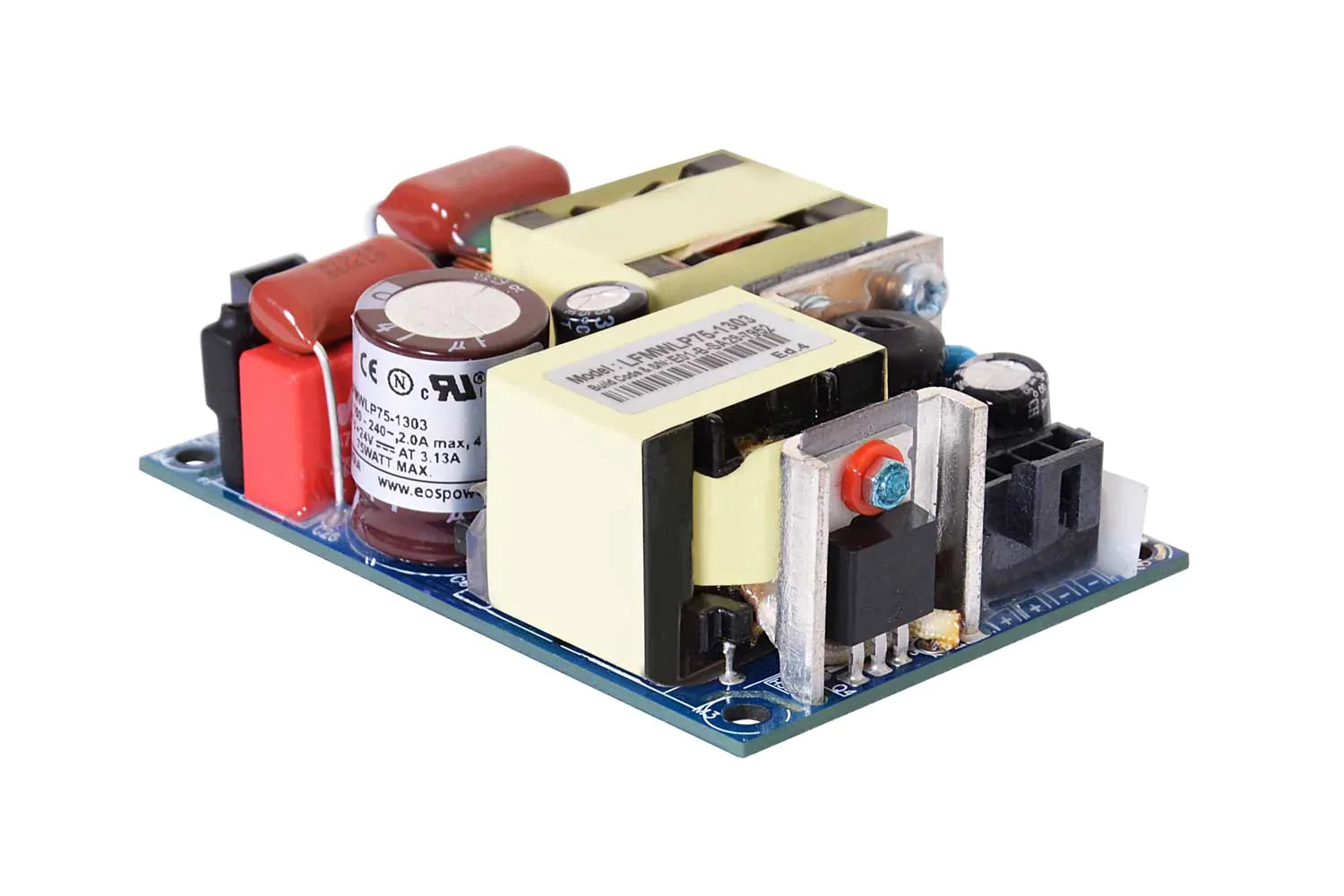

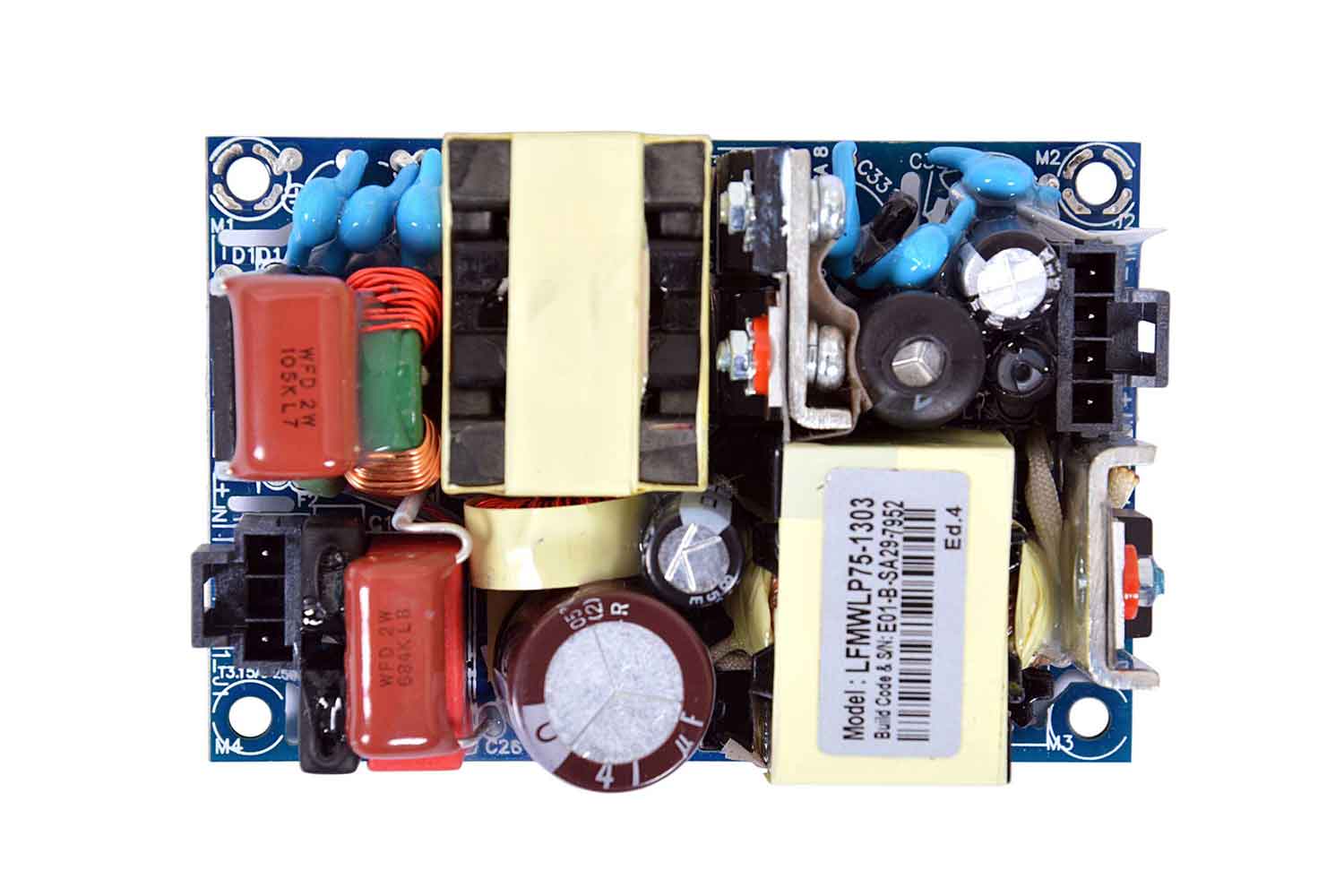

MWLP225

תיאור מוצר
MWLP Blue Series offers the size conscious customer industry leading watts per cubic inch in height profiles ranging from 25 mm to 30 mm in industry standard footprints. The Blue Series allows customers shrink their applications without compromising on power, quality or functionality
  • 4 x 2 x 1 Inches Form factor.
  • Height 1” above PCB.
  • Approval to EN60601 3rd Edition
  • Efficiencies 94% Typical
  • -40 to 70 degree operating temperature*
  • 12V/0.5A Fan Output, Thermal Shut-Down feature
  • Means of Protection : 2xMOPP
  • 3.37m Hours, Telcordia -SR332-issue 3
  • Class II option available
  • Meets standard IEC60601-1-2 : 2014 (4th Edition)
  • No Load Power < 0.5 Watts
  • 225 Watts with Forced Air Cooling.
  • 7 Year Extended Warranty Option.
