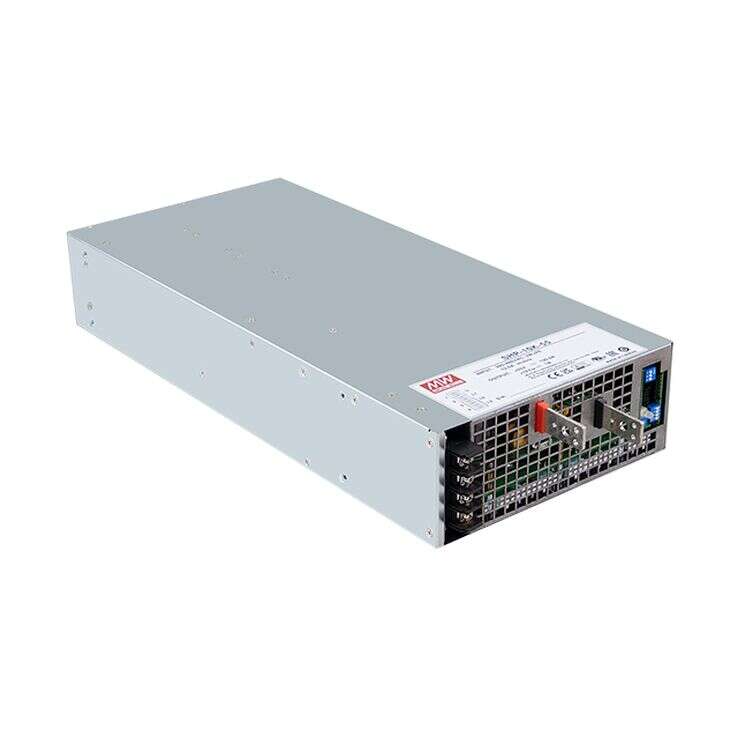

SHP-10K-HV-55

centralized bus power and other new applications, has launched its latest newly designed fully digital three-phase three-wire AC input SHP-10K power supply with 97% high efficiency, and maximum parallel output power up to 40kW

• 3Ø3W AC input with 340~530V wide range
• High efficiency up to 97%
• Water/forced air cooling types selectable
• Output voltage and current level programmable
• Built-in CANBus, optional PMBus/MODBus protocol
• Active current sharing (Parallel)up to 4 units(40kW)
• Protections: Over voltage, overload, short circuit
• Built-in Remote On-Off / T-alarm / DC-OK / Fan fail / AC fail signa
• Warrenty: 5 years

Specification SHP-10K-55
